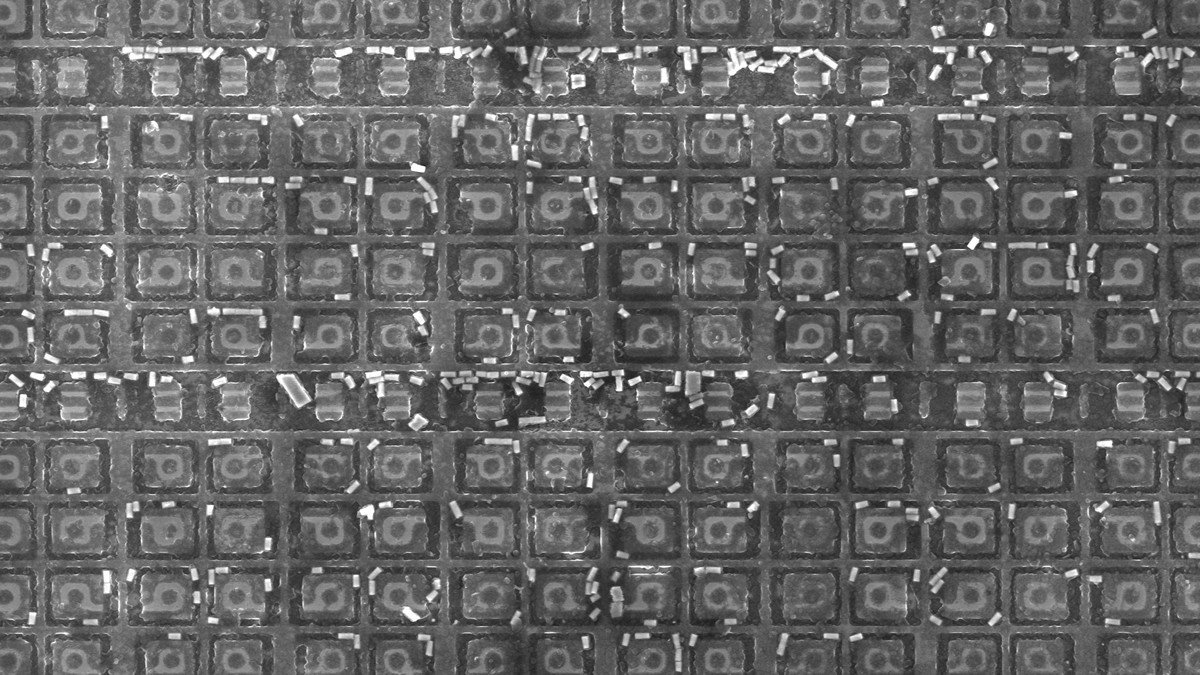

South Korean semiconductor titan SK Hynix officially announced on September 23, 2026, the commencement of commercial mass production for the world's first 12-layer High Bandwidth Memory 3E (HBM3E) with a groundbreaking 36-gigabyte (GB) capacity. The milestone reinforces the Icheon-based chipmaker's commanding position as the premier memory supplier to global artificial intelligence hardware giants, notably Nvidia, which relies on SK Hynix's specialized silicon to power cutting-edge data-center graphics processing units (GPUs).
The newly minted 12-high stack represents a massive 50% leap in memory density compared to preceding 8-layer, 24GB packages. Despite stacking 12 individual DRAM dies, SK Hynix engineers succeeded in maintaining the exact same total package thickness of 720 micrometers—the universal industry standard established by the JEDEC Solid State Technology Association. To achieve this architectural feat, the company reduced the thickness of each individual DRAM die by 40% before interconnecting them with vertical through-silicon vias (TSVs).
Breakthrough MR-MUF Packaging Enables 50% Higher Capacity at Identical Form Factor
Handling extreme thermal loads in densely stacked AI silicon was resolved through SK Hynix's proprietary Advanced MR-MUF (Mass Reflow Molded Underfill) process. By applying an optimized liquid epoxy molding compound between micro-bumps under controlled thermal reflow, the proprietary packaging technology improves heat dissipation by 10% compared to legacy thermo-compression methods, while eliminating warpage across ultra-thin silicon wafers.
In operational performance, the 12-layer HBM3E achieves transfer rates of up to 9.6 gigabits per second (Gbps) per pin. When configured in an eight-die GPU subsystem, the memory subsystem delivers a blistering cumulative bandwidth exceeding 1.22 terabytes per second (TB/s)—the equivalent of processing 240 high-definition full-length movies in a single second. Such throughput is indispensable for training massive trillion-parameter large language models (LLMs) and executing low-latency generative reasoning.
“By successfully mass-producing the world's first 12-layer 36GB HBM3E, SK Hynix has once again demonstrated undisputed technological leadership in AI memory. We will continue our stable supply of premium solutions to satisfy the explosive requirements of global hyperscalers.”
Cementing Leadership in the Global AI Memory Supercycle
SK Hynix confirmed that initial delivery allocations will begin reaching major customers, led by Nvidia, during the fourth quarter of 2026. The 36GB stacks are slated to power upcoming Blackwell Ultra B200 and Rubin architecture platforms, giving data-center operators the ability to expand memory capacity per socket from 192GB to 288GB, significantly reducing the physical server footprint required for complex AI model training.
The breakthrough widens SK Hynix's competitive moat against domestic rival Samsung Electronics and US-based Micron Technology in the lucrative high-bandwidth memory market. With Wall Street forecasting that HBM revenue will account for more than 30% of total DRAM industry revenues by 2027, SK Hynix's early transition to volume 12-layer production positions the firm to capture the lion's share of operating profits across the ongoing artificial intelligence infrastructure supercycle.
